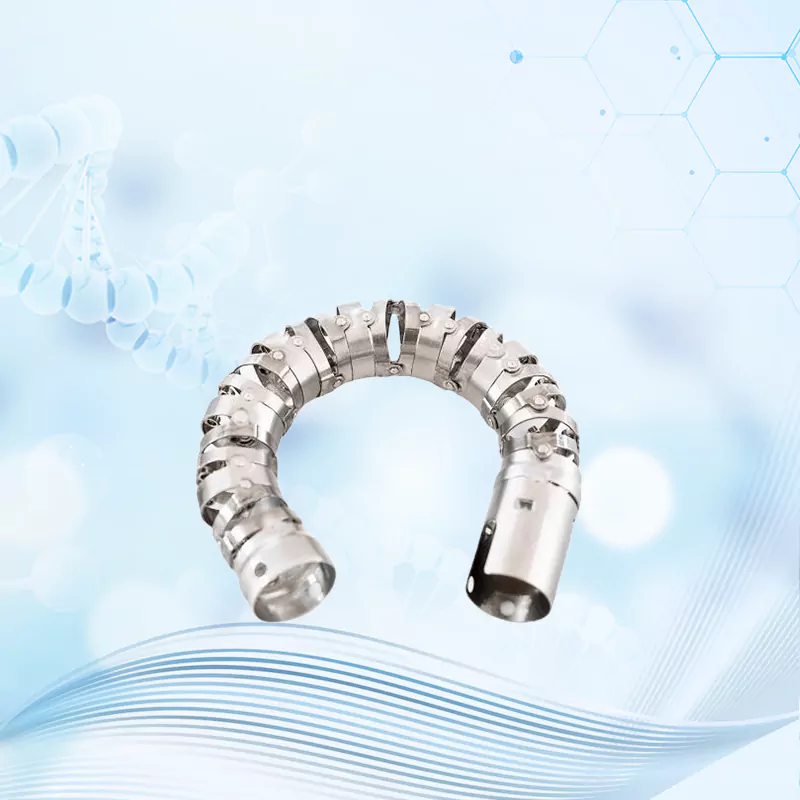

The bending section is the foremost part of the flexible endoscope’s insertion tube, connected to a longer flexible insertion tube at the rear.
The tip integrates all functions, enabling active guidance and blind spot-free observation. The doctor remotely controls the movement of the bending section by rotating the handwheel on the control unit, allowing for dexterous movement in all directions (left, right, up, and down) to observe every corner.
| Type | OD (mm) | THK (mm) | ID (mm) | LEN (mm) | MODEL |
| Gastroscope | 8.5 | 0.3 | 4.9 | 68 | GIF-XQ240 |
| Gastroscope | 8.5 | 0.3 | 4.8 | 68 | GIF-Q150 |
| Gastroscope | 8.5 | 0.3 | 4.8 | 68 | GIF-Q180 |
| Gastroscope | 8.5 | 0.3 | 4.8 | 68 | GIF-160 |
| Gastroscope | 8.5 | 0.3 | 4.8 | 73 | GIF-V70 |
| Gastroscope | 8.7 | 0.25 | 5.3 | 68 | GIF-Q260 |
| Gastroscope | 8.8 | 0.25 | 5.1 | 72 | GIF-H260 |
| Gastroscope | 8.8 | 0.3 | 5 | 73 | GIF-Q160 |
| Gastroscope | 8.8 | 0.3 | 5 | 72 | GIF-140 |
| Gastroscope | 9 | 0.3 | 5.1 | 72 | GIF-Q145 |
| Gastroscope | 9.1 | 0.3 | 5.1 | 75 | GIF-H180 |
| Gastroscope | 8.9 | 0.25 | 5.1 | 65.6 | GIF-H190 |
| Gastroscope | 9.5 | 0.3 | 5.5 | 74.5 | GIF-HQ190 |
| Gastroscope | 9.5 | 0.3 | 5.5 | 75 | GIF-Q140 |
| Colonoscope | 9.7 | 0.3 | 5.7 | 99 | PCF-160AL |
| Colonoscope | 9.7 | 0.3 | 5.7 | 99 | PCF-Q180AL |
| Colonoscope | 9.7 | 0.3 | 5.7 | 99 | PCF-240L |
| Colonoscope | 9.7 | 0.3 | 5.7 | 98 | PCF-Q260AL |
| Colonoscope | 10.2 | 0.3 | 6 | 99 | PCF-H180AL |
| Colonoscope | 10.4 | 0.3 | 6.2 | 96 | PCF-H190L |
| Colonoscope | 10.85 | 0.3 | 6.6 | 98 | PCF-H190DL |
| Colonoscope | 10.9 | 0.3 | 6.7 | 111 | CF-Q260DL |
| Colonoscope | 10.9 | 0.4 | 6.5 | 111 | CF-240L |
| Colonoscope | 11.7 | 0.4 | 7.3 | 113 | CF-Q160AL |
| Colonoscope | 11.7 | 0.4 | 7.3 | 113 | CF-Q180AL |
| Colonoscope | 11.7 | 0.4 | 7.3 | 113 | CF-Q160L |
| Colonoscope | 11.7 | 0.4 | 7.3 | 112 | CF-H180AL |
| Colonoscope | 11.7 | 0.4 | 7.3 | 112 | CF-H260AL |
| Colonoscope | 11.7 | 0.4 | 7.3 | 109 | CF-HQ190 |
| Duodenoscope | 11 | 0.3 | 6.4 | 54 | TJF-260 |
| Duodenoscope | 11 | 0.3 | 6.4 | 54 | TJF-240 |
| Duodenoscope | 11 | 0.3 | 6.4 | 54 | TJF-160 |
| Gastroscope | 9.1 | 0.25 | 5.8 | 72 | EG-2990I |
| Gastroscope | 9.1 | 0.25 | 5.8 | 66 | EG-2990K |
| Gastroscope | 9.1 | 0.25 | 5.8 | 70 | EG-29i10 |
| Gastroscope | 9.1 | 0.25 | 5.8 | 70 | EG-2990K |
| Gastroscope | 9.1 | 0.25 | 5.8 | 70 | EG-29i10 |
| Gastroscope | 9.1 | 0.25 | 5.8 | 70 | EG-290KP |
| Gastroscope | 9.1 | 0.25 | 5.8 | 68.6 | EG-290V |
| Gastroscope | 8.3 | 0.25 | 4.8 | 64 | EG-2770K |
| Gastroscope | 8.3 | 0.25 | 4.8 | 63 | EG-27i10 |
| Colonoscope | 11.6 | 0.3 | 7.1 | 102 | EC-3890FK |
| Colonoscope | 11.6 | 0.3 | 7.1 | 102 | EC-3890FKP |
| Colonoscope | 11.6 | 0.3 | 7.1 | 102 | EC-3890FKZP |
| Colonoscope | 11.6 | 0.3 | 7.1 | 102 | EC-380LKP |
| Colonoscope | 11.6 | 0.3 | 7.1 | 101 | EC-3890SI |
| Gastroscope | 7.6 | 0.15 | 4 | 70.7 | EG-530FP |
| Gastroscope | 8.3 | 0.25 | 4.7 | 70.7 | EG-530WR |
| Gastroscope | 8.3 | 0.25 | 4.7 | 70.7 | EG-250WR5 |
| Gastroscope | 9.6 | 0.2 | 5.8 | 72.5 | EG-590WR |
| Colonoscope | 11.9 | 0.25 | 9.7 | 97.8 | EC-530WI |
| Colonoscope | 11.9 | 0.25 | 9.7 | 97.8 | EC-530WM |
| Colonoscope | 11.9 | 0.25 | 9.7 | 97.8 | EC-530WL |
| Colonoscope | 11.9 | 0.25 | 9.7 | 97.8 | EC-250WL5 |
| Colonoscope | 11.9 | 0.25 | 9.7 | 102.8 | EC-590WI4 |
| Colonoscope | 11.9 | 0.25 | 9.7 | 102.8 | EC-590WM4 |
| Colonoscope | 11.9 | 0.25 | 9.7 | 102.8 | EC-590WL4 |
